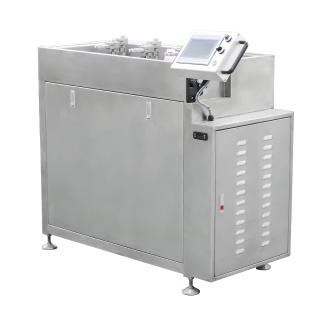

LABTT EQM-3000-3 End Quenching Testing Machine

Number of jobs (PCs.): 3

Water pump (set): 3

Spraying time (min): 0-99min(It can be set arbitrarily)

Water column nozzle diameter（mm）: 12.5

Water column height（mm）: 65+-5(Each water column can be adjusted separately)

Distance from water column to sample end face（mm）: 12.5+-0.5（Adjustable）

Hole diameter in sample support（mm）: 26

Rated flow of water pump（L/min）: 200

Cooling water temperature（°C）: 20+/-3

Compressor size（匹）: 1.5

power: 220

Auxiliary heating power: 1.0KW(Optional2.0或3.0KW)

Overall dimension（mm）: 1472*710*1030

weight（Kg）: 100
