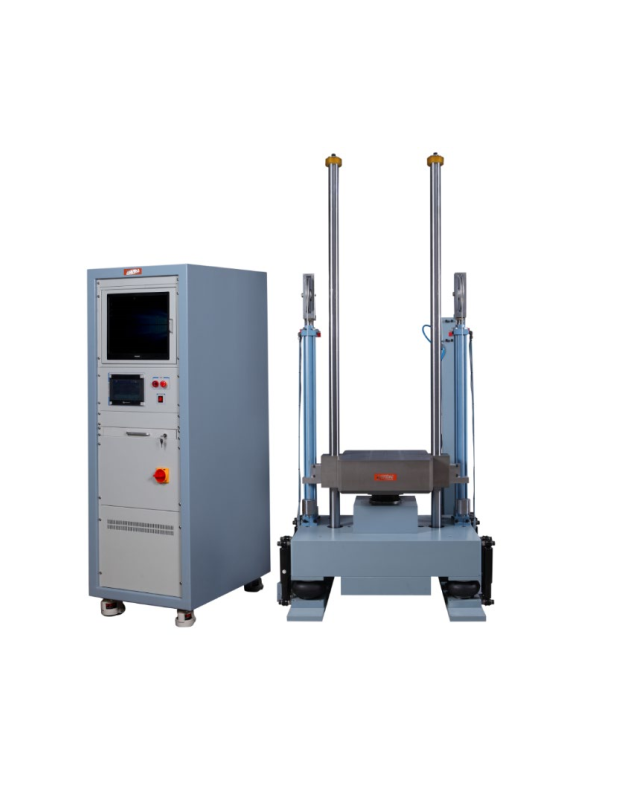

LABTONE SKT30 Mechanical shock Test System (30kg, 400*400mm, 10-1000G)

Main parameters of the shock tester

Operating platform: 400 × 400 mm

Max. load: 30 KG

Acceleration: Half sine wave: 10-1000G

Pulse duration: Half sine wave: 1 to 30 ms

Acceleration allowance: ≤ 10%

Rate of speed change: ≤ 10%

Transverse ratio of table: ≤ 10%

Equipment dimensions: 1230*1120*2330 mm

Equipment weight: 1750 kg

Measuring system

Input channels: 2 channels

Sampling frequency: 192KHz

Pulse duration: 0.5 to 100ms

Max. acceleration: 5000G

Communication interface: USB2.0

Supportive standard: ISO, UN38.3, MIL-STD-810, others

Operating system: Microsoft Windows10

System acceleration sensor

Brand: LAB

Model: 23108

Output mode: Charge type

Sensitivity: 10 pC/g

Frequency range: 0.5 to 12KHz

Acceleration range: ±2000G

Operating environment: -40 to +160℃

Other information

Power supply: AC, three phase, 400V±10%,50Hz

Compressed air: 0.5 to 0.8Mpa

Temperature: RT~40℃

Humidity: 25℃, ＜ 85RH%
