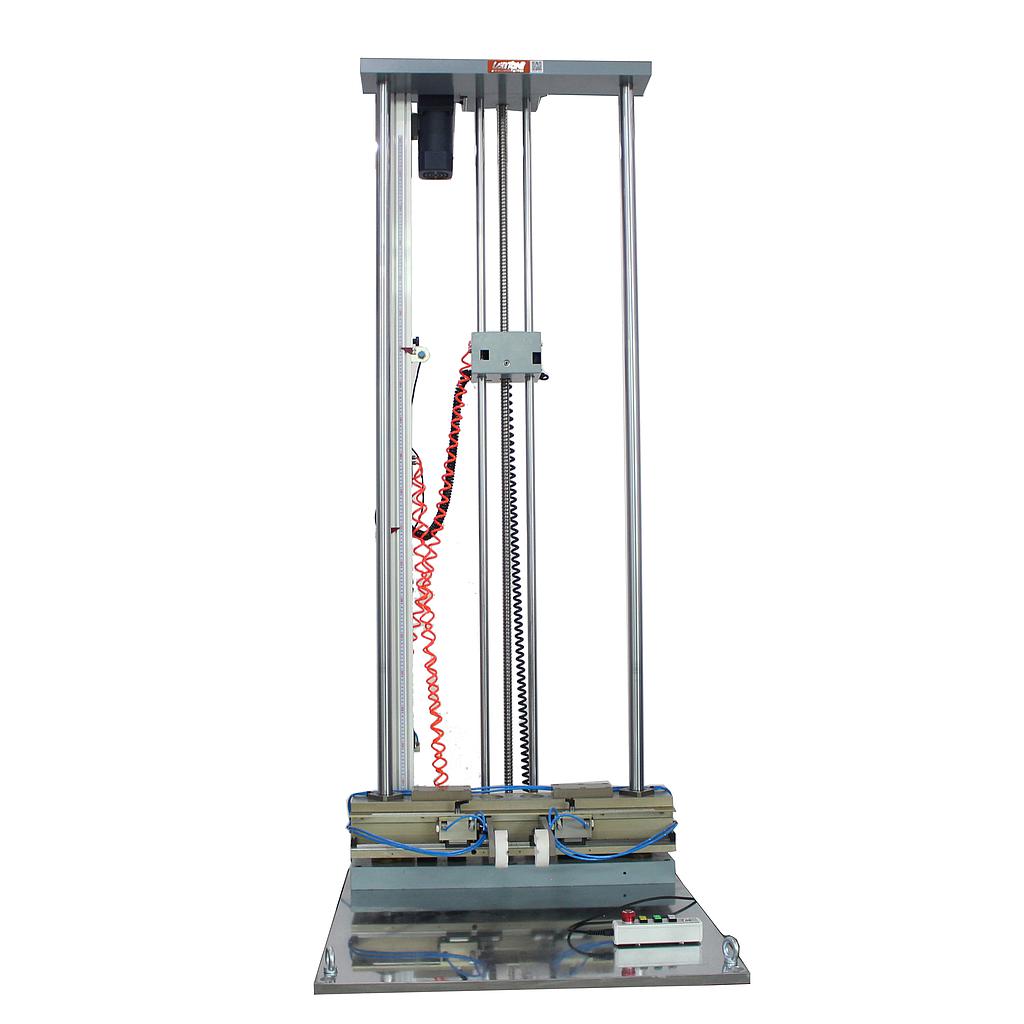

LABTONE DT-2 Guided Drop Tester for Mobile Phones, Smart Phones, Tablets, Laptops, PDA (2 kg; 250-2000 mm)

Drop height range (mm): 250-2000

Specimen max.weight (kg): 2

Specimen max. size (mm): 500 x 600 x 2382

Drop height setting: Scale and setting pinter

Machine Dimension (mm): 1500*1000*2150

Machine weight (kg): 85

Power supply: AC220V 50Hz compressed air 0.5~0.7Mpa

Standards: JIS C 60068-2-31, IEC 60068-2-31

*Product image is for illustrative purposes only

DT275 drop tester is mainly suitable for portable products (mobile phones, smart phones, tablets, laptops, PDA, digital cameras, cameras, electronic components, etc.. The DUT can be fixed in any position, from any height to fall, to test the impact resistance of the product.
