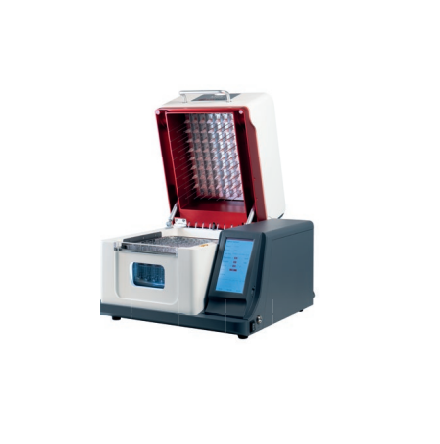

LabTech MultiVap 64 Automated Concentration Solution

TECHNICAL FEATURES

Number of channels / needles: 8 channels, 8 needles each (total 64 samples of 10 mL)

Operating mode: Independent or simultaneous operation

Nitrogen needle adjustment: Automatic, according to sample volume reduction

Concentration monitoring: Visible process via front window and internal lights

Safety cover: Auto-locked during operation

Nitrogen needle replacement: Easy replacement

Control panel: 7” color touch-screen

Low liquid level alarm: Yes

Software interface: Intuitive

Heating mode: Liquid bath heating mode

Temperature control: P.I.D.

Temperature range: Ambient to 100°C

Nitrogen requirement: From 2 to 6.8 bar (30 to 100 psi)

Weight: 30 kg

Dimensions (L × W × H) cm (open): 50 × 50 × 69

Dimensions (L × W × H) cm (closed): 50 × 50 × 45

Power supply voltage: 230V 50/60Hz

INCLUDED

Needles for nitrogen channels: N° 64 + 10

Needle O-ring seals: N° 8

Spare fuse set: N° 1

Exhaust fume tube: N° 1, 3 m

Water bath drain tube: N° 1

Electric power cable: N° 1

Vial rack: N° 1, 64-position (10 mL volume)

Glass vials: N° 100, 10 mL

PP vials: N° 100, 10 mL

Plugs to close nitrogen channels: N° 64
