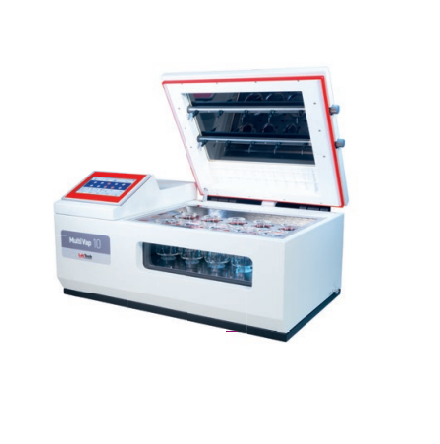

LabTech MultiVap 10 Automated Concentration Solution

TECHNICAL FEATURES

Nitrogen purge type: Vortex nitrogen purge for highest concentration efficiency

Nitrogen purge direction: Adjustable according to concentration cup size and sample volume

Process visibility: Operations visible through backlit front window

Residual volume check: Sample cups do not need to be handled

Concentration chamber: High-efficiency vapor exhausting system included

Nitrogen control: Built-in digital nitrogen gas regulator

Liquid endpoint detection: Automatic detection of liquid endpoint

Number of positions: 10 positions supporting 50 & 200 mL concentration cups simultaneously

Sensors: 10 infrared sensors for single cup volume control

Adapter availability: Adapters available to work with same vial for two different end-points

Liquid bath temperature range: Ambient to 70°C

Safety alarms: Low liquid level and pressure alarms

Control interface: Touch screen control interface

Nitrogen requirement: From 0 to 1.65 bar (0 to 24 psi)

Weight: 25 kg

Dimensions (L × W × H) cm (open): 44 × 68 × 84

Dimensions (L × W × H) cm (closed): 44 × 68 × 53

Power supply voltage: 230V 50/60Hz

INCLUDED

Concentration vials 200 mL: N° 10 – 1 mL end-point

Concentration vials 50 mL: N° 10 – 1 mL end-point

Rack for 50 mL vials: N° 1 – 10 positions

Rack for 200 mL vials: N° 1 – 10 positions

Exhaust fume tube: N° 1 – 3 m

Electric power cable: N° 1

Plastic vapor stoppers for 50 mL holes: N° 10

Plastic vapor stoppers for 200 mL holes: N° 10
