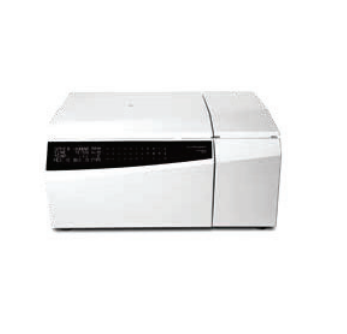

LabTech 1696R II Multi Purpose, High-speed Centrifuge (16000 rpm)

Max. RPM / RCF for fixed angle: 16,000 rpm / 27,991 × g

Max. RPM / RCF for swing-out: 5,000 rpm / 5,394 × g

Max. capacity for fixed angle: 6 × 250 mL; 24 × 15 mL; 48 × 1.5 / 2.0 mL

Max. capacity for swing-out: 4 × 1,000 mL; 4 × 2 × 250 mL; 4 × 29 × 15 mL

Temperature range (°C): -11°C to 40°C

Fast cool button: Yes

Time control: Pulse, timed < 10 hr or continuous

Time counting range: Selectable, at set speed or from starting

Noise level (dependent on rotor): ≤ 60 dB (GRS-B-750-4: ≤ 70 dB)

RCF / RPM conversion: Yes

ACC / DEC ramps: 9 / 10

Program memory: 100, 3 easy programs save / call

Power supply: AC 230V, 50Hz (AC 220–230V, 60/50Hz; 110V optional)

Power requirement: 2.0 kVA

Dimensions (W × D × H): 775 × 695 × 395 mm

Net weight: 132 kg

CE mark: Yes
