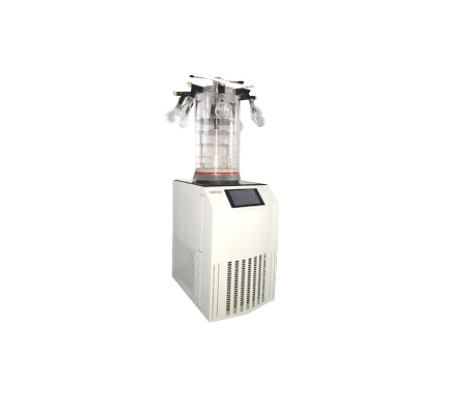

Labstac ZF114 Top Press with Manifold Freeze Dryer

Type: Top Press with Manifold

Tray: 3

Tray Diameter: 200 mm

Interlayer Spacing: 70 mm

Vial ɸ 22: 165

Vial ɸ 16: 285

Vial ɸ 12: 560

Flask: 8

Condenser Temperature: <50°C

Freeze Drying Surface Area: 0.092 m²

Plate Load Capacity: 1 L

Water Holding Capacity: 4 Kg/24 h

Vacuum: <10 Pa

Overall Dimension: 500x400x650 mm

Power: 950 W

Power Supply: 220 V 50 HZ /110 V 60 Hz

Optional Accessories:

Accessory Code Name

FX5001 Condenser Temperature: -80°C

FX5002 PLC controller

FX5003 100 ml Flask

FX5004 250 ml Flask

FX5005 500 ml Flask

FX5006 1000 ml Flask

FX5007 Vacuum Pump
