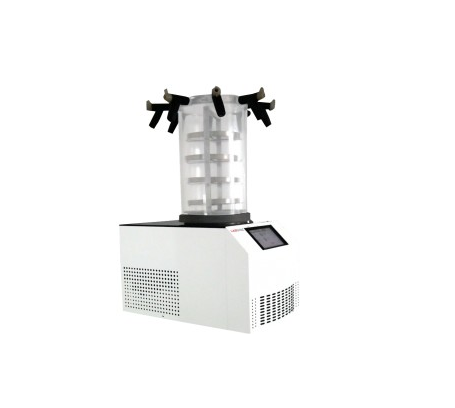

Labstac ZB113 Manifold Freeze Dryer (Benchtop type)

Type: Manifold

Tray: 4

Tray Diameter: 200 mm

Interlayer Spacing: 70 mm

Vial ɸ 22: 260

Vial ɸ 16: 480

Vial ɸ 12: 920

Flask: 8

Condenser Temperature: <50°C

Freeze Drying Surface Area: 0.12 m²

Plate Load Capacity: 1.5 L

Water Holding Capacity: 3 Kg/24 h

Vacuum: <10 Pa

Overall Dimension: 500x400x370 mm

Power: 850 W

Power Supply: 220 V 50 HZ /110 V 60 Hz

Optional Accessories

Accessory Code Name

FX5001 Condenser Temperature: -80°C

FX5002 PLC controller

FX5003 100 ml Flask

FX5004 250 ml Flask

FX5005 500 ml Flask

FX5006 1000 ml Flask

FX5007 Vacuum Pump
