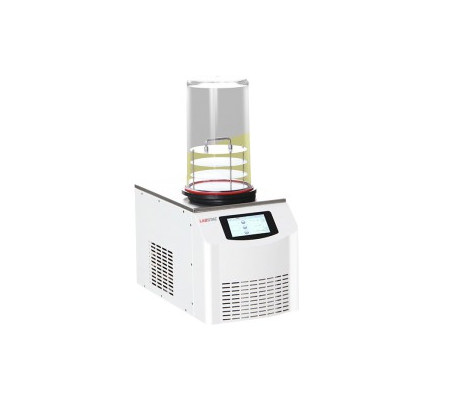

Labstac ZB111 Standard Freeze Dryer (Benchtop type)

Type: Standard

Tray: 4

Tray Diameter: 200 mm

Interlayer Spacing: 70 mm

Vial ɸ 22: 260

Vial ɸ 16: 480

Vial ɸ 12: 920

Condenser Temperature: <50°C

Freeze Drying Surface Area: 0.12 m²

Plate Load Capacity: 1.5 L

Water Holding Capacity: 3 Kg/24 h

Vacuum: <10 Pa

Overall Dimension: 500x400x370 mm

Power: 850 W

Power Supply: 220 V 50 HZ /110 V 60 Hz

Optional Accessories:

Accessory Code Name

FX5001 Condenser Temperature: -80°C

FX5002 PLC controller

FX5007 Vacuum Pump

Datasheet
