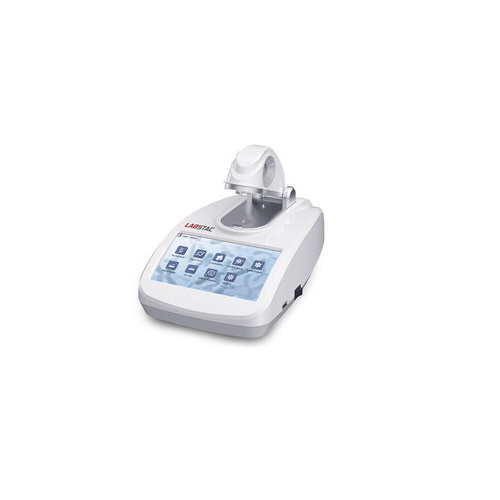

Labstac SPE61-004 Nano Spectrophotometer (0.5~2 μl)

Test sample capacity: 0.5~2 μl

Measurement Time: About 5 s

Light absorption accuracy: 0.002 Abs (1mm)

Absorbance accuracy: 1% (0.76 Abs at 256 nm)

Light Source: Xenon lamp

Detector: 2048 linear CCD array

Optical path: ≤ 0.7mm

Wavelength Range: 200~850 nm

Wavelength accuracy: <1 nm

Wavelength resolution: ≤2 nm

Light absorption range: 0.04~300 Abs (10 mm)

Power: 20 W

Power Adapter: 12 V, 5 A

Dimension (W/D/H): 197x327x181 mm

Weight (Net/Gross): 3.1 kgs

Cuvette specifications: 12.5mm(L) x 12.5mm(W) x 45mm(H)

Cuvette optical path length: - 10, 5, 2, 1mm

Cuvette beam height: 6mm
