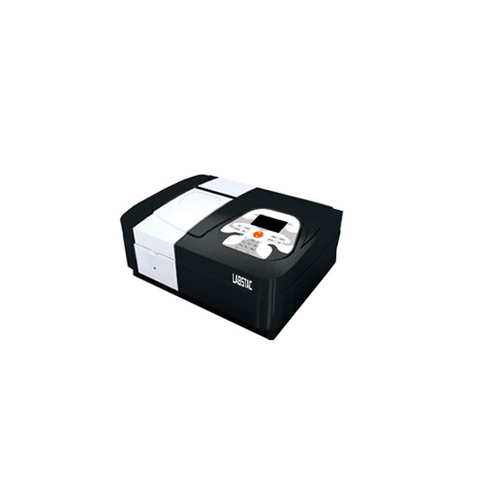

Labstac SPE11-0320 Single Beam UV Visible Spectrophotometer (320-1100 nm)

Wavelength Range: 320-1100 nm

Wavelength Accuracy: ±0.5 nm

Wavelength Reproducibility: ≤0.2 nm

Wavelength Repeatability: ≤0.2 nm

Spectral Bandwidth: 3 nm

Photometric Range: 0.200 %T, -0.3-3 A, 0-9999 C

Photometric Accuracy: ±0.3 %T

Photometric Repeatability: ≤0.15 %T

Stability: ±0.0001 A/hr at 500 nm

Baseline Flatness: ±0.0001 A/h

Stray Light: ≤0.05 %T

Light Source: Tungsten-Halogen Lamp

Photometric Mode: ≤0.05 %T

Software: USB

Gross Dimension (W/D/H): 460x380x180 mm

Display: LCD (228x64 pixel)

Noise: ≤0.0005A

Weight (Net/Gross): 15 kg

Power: 300 W

Power Supply: AC 220V/50Hz or AC110/60Hz
