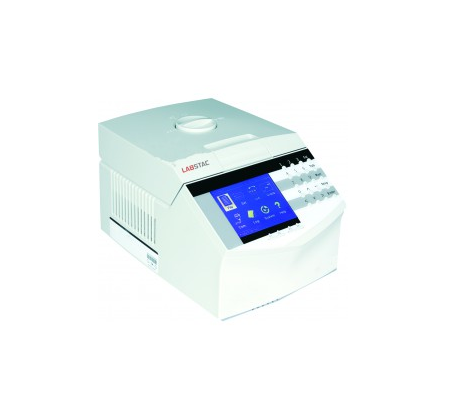

Labstac PT111 Thermal Cycler (96x0.2 ml / 54x0.5 ml / 96x0.2 ml+77x05 ml / 384well)

Temperature Range: 0°C~99.9°C

Max.Heating Ramp Rate: 4.0°C/s

Max.Cooling Ramp Rate: 3.5°C/s

Block Formats: 96x0.2 ml (A) / 54x0.5 ml (B) / 96x0.2 ml+77x05 ml (C) / 384well (D)

Display Interface: 5.7’ LCD

Heating/Cooling adjustable rate: 0.1°C/s~4.0°C/s

Uniformity: ≤±0.2°C(20~75°C)

Accuracy: ≤±0.2°C

Hot Lid Temperature: 30~115°C

Max.No.of Cycle: 99

Communication: USB2.0 / RS 232 / RJ45

Temp Control Mode: Block, tube

Memory Capacity: 200

Dimension (W×D×H): 380x270x250 mm

Weight: 7.2 kg

Power Supply: 85～264 V AC , 47～63 Hz

Accessories:

Accessory CodeNameCapacaity

PX1001Block C96×0.2 ml+77×0.5 ml

Optional Accessories:

Accessory Code Name Capacaity

PX1002 Block A 96×0.2 ml

PX1003 Block B 54×0.5 ml

PX1004 Block D 384 well

Datasheet
