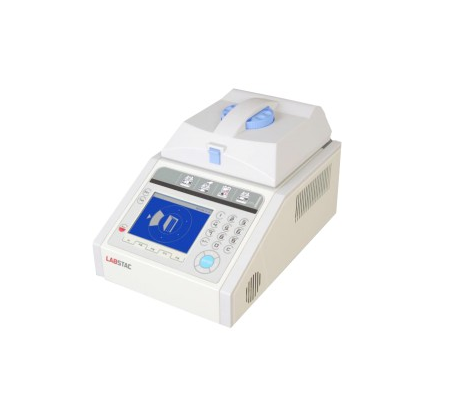

Labstac PG122 96 Well Gradient Thermal Cycler (96×0.2 ml+77×0.5 ml)

Sample Capacity: 96×0.2 ml+77×0.5 ml

Temperature Range: 0°C~99.9°C

Temperature Increment/Decrement: 0.1~10.0°C

Hold at 4℃: Forever

Max. ramp rate: 0.1°C~2.5°C

Max Heating Rate: 4.5°C

Max Cooling Rate: 4°C / s

Display Interface: LCD, 8’，800×600

Display Resolution: 0.1°C

Uniformity: ≤±0.3°C

Accuracy: ≤±0.2°C

Thermal Gradient Accuracy: ≤±0.3°C

Gradient Spread: 1~30°C

Gradient Uniformity: ≤±0.2°C

Hot Lid Temperature: 30°C~110°C

Height of hot Lid: Stepless Adjustable

Max.No.of Cycle: 100

Program Storage: 10000+(USB Flash)

Max Program Steps: 30

Communication: USB2.0 , LAN

Temp Control Mode: Block, tube

Time Increment/Decrement: 1 sec ~600 sec

Pause Function: Yes

Auto Data Protection: Yes

Dimension (W×D×H): 270x390x255 mm

Power: 600 W

Weight: 9 kg

Power Supply: 85～264 V AC , 47～63 Hz
