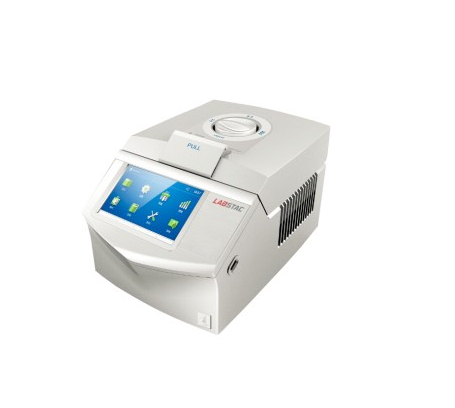

Labstac PG113 Gradient Touch Screen Thermal cycler

Temperature Range: 0°C~99.9°C

Max.Heating Ramp Rate: 5°C/s

Max.Cooling Ramp Rate: 5°C/s

Block Formats: 96x0.2 ml (A) / 54x0.5 ml (B) / 96x0.2 ml+77x05 ml (C) / 384well (D)

Display Interface: 7’ LCD

Heating/Cooling adjustable rate: 0.1°C/s~4.0°C/s

Uniformity: ≤±0.2°C

Accuracy: ≤±0.1°C

Gradient Temp Range: 30~99°C

Thermal Gradient Span: 1~30°C

Gradient Uniformity: ≤0.2°C(single row)

Hot Lid Temperature: 20~110°C

Max.No.of Cycle: 999

Communication: USB2.0 / RS 232 / RJ45

Temp Control Mode: Block, tube*

Memory Capacity: 2000**

Note: *10~100µl Optional **Unlimited with use of USB memory stick

Intelligent Diagnosis: 108

Dimension (W×D×H): 380x270x250 mm

Weight: 8.1 kg

Accessories:

Accessory CodeNameCapacaity

PX1001Block C96×0.2 ml+77×0.5 ml

Optional Accessories:

Accessory Code Name Capacaity

PX1002 Block A 96×0.2 ml

PX1003 Block B 54×0.5 ml

PX1004 Block D 384 well
