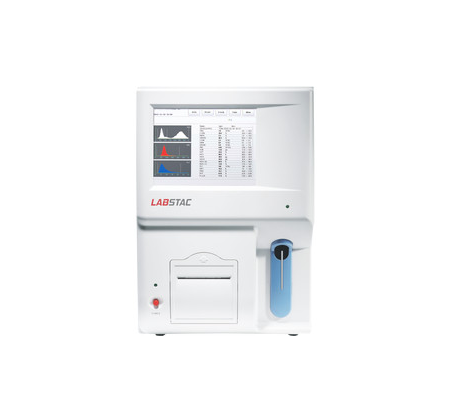

Labstac NH111 Hematology Analyzer

Interface: Keyboard, mouse, RS232 serial port

Test Principle: Impedance for cell counting and cyanide-free method for HGB

Test Flow: 1 click to finish test automatically, 10µL blood is needed

Clog Clear: High voltage and high pressure flush

Parameter: 3 part differentiation of WBC, 20 parameters

Histograms: WBC, RBC, PLT

Sample mode: Venous, Capillary and prediluted blood

Test Channel: 2

Throughput: 60 samples/hour

Language: English, Spanish, Portuguese, etc.

QC Mode: 3 level QC, L-J graph

Calibration Mode: Auto mode and Manual mode

Reference Range Type: Newborn, children, male, female and general

Reagent: 2(Lyse and Diluent)

Memory: 100,000 sample results

Display: Touch screen LCD

Printer: Thermal printer, supports external printer

Dimension: 410x435x472 mm

Weight: 21 kg

Power Supply: 100~240 AC, 50/60 Hz

Performance:

ParametersPrecision(CV)Measurement Range

WBC≤2.0% (7.0-15.0x109 ) / L(0-99.9x109) / L

RBC≤1.9% (3.5-6.0x1012 ) / L(0-99.9x1012) / L

HGB≤1.9% (110.0-180.0 )g / L(0-300.0)g / L

MCV≤0.4% (80.0-110.0 ) fL

PLT≤0.4% (100.0-500.0x109 ) / L(0-999x109) / L

Accessories:

Accessory CodeNameUnitQuantity

AX5001Power Cable (1.8 m)pc1

AX5002Ground Cablepc1

AX5003Serial Port Cablepc1

AX5004Mousepc1

AX5005Keyboardpc1

AX5006Touch Penpc1

AX5007Side Door Keypc1

AX5008Hex Wrench (Φ 2.5)set1

AX5009Service Packset1

AX5010Thermal Printer Paper (Width: 80 mm)roll1

AX5011Diluent (20 L)bottle1

AX5012Lyse Solution (500 mL)bottle1

AX5013PB Cleanser (50 mL)bottle1

AX5014E-Z Cleanser (50 mL)bottle1

AX5015Diluent Cap Componentset1

AX5016Lyse Solution Cap Componentset1

AX5017Waste Bottle Cap Componentset1

AX5018Waste Bottlepc1

Optional Accessories:

Accessory Name Unit

Code

AX5019 Barcode Scanner Assembly pc

AX5020 Thermal Printer Paper (Width: 80 mm) roll

AX5021 Service Manual pc

AX5022 Diluent (20 L) bottle

AX5023 Lyse solution (500 mL) bottle

AX5024 Lyse solution (1 L) bottle

AX5025 PB Cleanser (50 mL) bottle

AX5026 E-Z Cleanser (50 mL) bottle

AX5027 CBC-3D Blood QC High Level (3.0 mL) (R&D) tube

AX5028 CBC-3D Blood QC Normal Level (3.0 mL) (R&D) tube

AX5029 CBC-3D Blood QC Low Level (3.0 mL) (R&D) tube

AX5030 CBC-CAL PLUS Calibrator (3.0 mL) (R&D) tube
