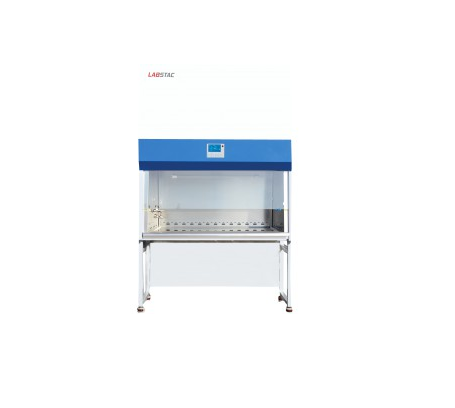

Labstac BC231 Class II, Type A2 Biological Safety Cabinet

Type: Class II, Type A2

HEPA Filter: 2

HEPA Filter Efficiency: 99.999% efficiency at 0.3 µm. Filter life Indicator

Airflow Volume Inflow: 349 m3 / h (205 cfm)

Airflow Volume Downflow: 64%: 638 m3/h (375 cfm)

Airflow Volume Exhaust: 36%: 359 m3/h (211cfm)

Filter Guard Type: Aluminum alloy frame

Minimum Face Velocity: 75 linear feet per minute (lfpm)

Inflow Velocity: 0.53±0.025 m/s

Down Flow Velocity: 0.33±0.025 m/s

Airflow System: 0% air re-circulation, 100% air exhaust

UV Lamp: 18Wx1

Illumination: ≥1000 lux

Work Surface Height: 750 mm

Tested Opening: 200 mm

Max Opening: 550 mm

Inner Dimension (WxDxH): 910x600x600 mm

Overall Dimension (WxDxH): 1087x775x2265 mm

Package Size: 1250x1080x1840 mm

Front Window: Motorized, two layer laminated toughened glass ≥5 mm, Anti UV

Control System: Microprocessor

Chamber Material: Cold-rolled steel coated with anti-bacteria powder coating

Socket: Two, Total load of two sockets: 500 W

Tap: Water tapx1, Gas tapx1

Ground Resistance: ≤0.10 Ω

Noise Level: NSF 49≤61 dB/EN 12469≤58 dB

Weight: 270 kg

Power: 300 W

Power Supply: AC220 V/110 V, 50 Hz/60 HZ, 9A, BTU/Hr: 1689

Accessories:

BX1026Fluorescent Lamp

BX1027UV Lampx2

BX1028Base Stand

BX1029Remote Control

BX1030Foot switch

BX1031Drain Valve

BX1032Waterproof Sockets

BX1033Stainless Steel water & Gas Taps

Optional Accessories:

BX1001Infrared Sterilizer(External Dimension: 150x95x210 mm)

BX1002Airflow Tester

BX1003Formalin Fumigation Sterilizer(Package Size: 300x200x160)

BX1004Ammonium Hydrogen Carbonate Neutralizer(Package Size: 300x200x160)

BX1005Armrest

BX1006Laboratory Chair

BX1007Dust Particle Counter

BX1008Digital Sound Level Meter

BX1009Illumination Meter

BX1010Air Flow Anemometer

BX1011Protective Garment

BX1012Protective Gloves
