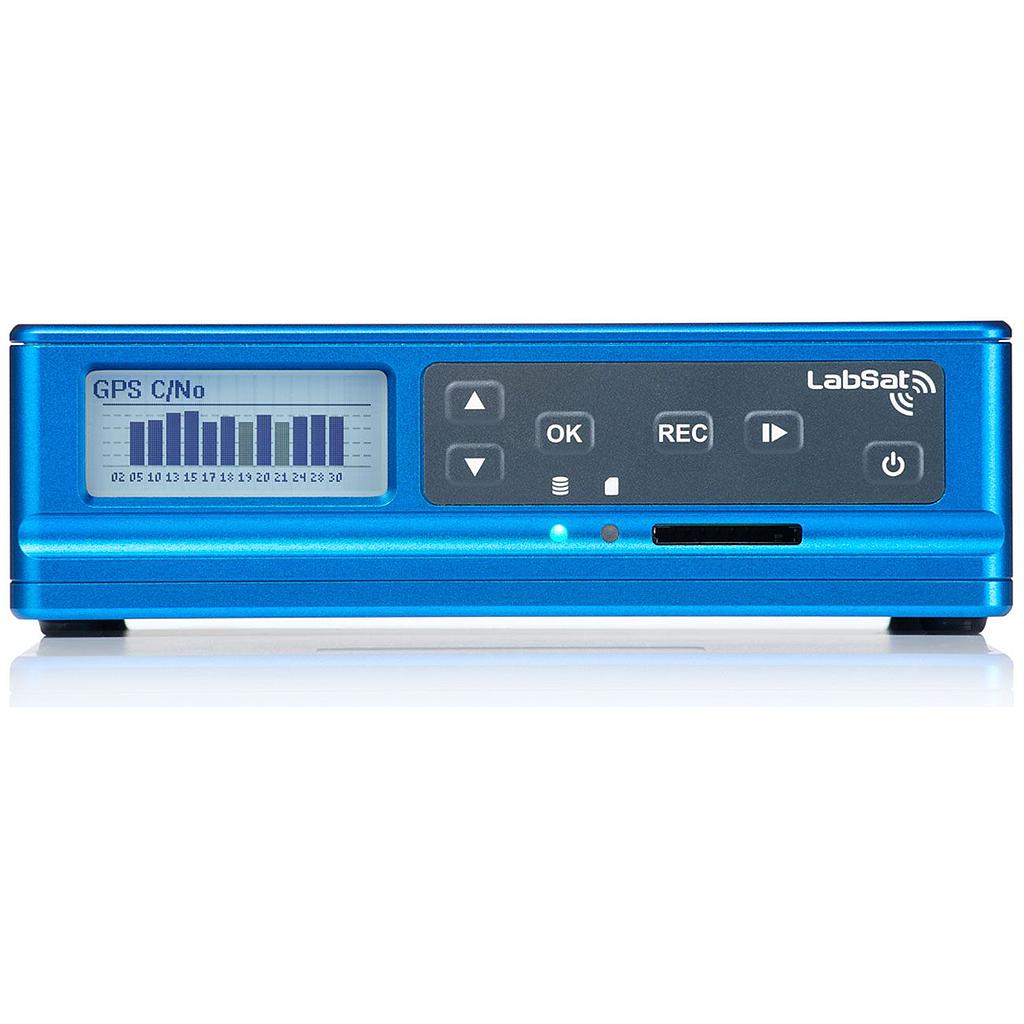

LABSAT LabSat 4 GNSS Record simulator (No antenna, battery, carry case)

Record Only

Constellations:

GPS L1, L2, L5;

Galileo E1, E5a/b, E6;

GLONASS G1, G2, G3;

BeiDou B1, B2a/b, B3;

QZSS L1, L2, L5

NavIC L1, L5, S-Band;

SBAS L1, L5;

Pulsar X1, X5.

Nominal Output Signal Level: -93 dBm/MHz @ 0 dB

Variable attenuator provides between +20 dB and -69 dB of adjustment during replay

RF Channels: 3

RF Channel Centre Frequencies: Selectable

Number of Satellites Observed: All in view

Bandwidth: Variable 10 - 60 MHz per channel

Sampling Frequency: Automatically adjusted to suit bandwidth 10 - 61 MHz

Quantisation: b1, 2, 4, 8, 12 bits I&Q

Data Format: I & Q

Additional Logging: 2x CAN channels, 4x Digital channels, 1x RS232 channel, 1x CAN-FD

User Defined Simulation Capability: Yes, through optional Simulation Software license

Storage: 7 TB SSD

All versions come with an 8 GB SD Card (for firmware upgrades only) and removable battery pack

Data Transfer: High-speed data transfer to and from SSD via Gigabit Ethernet

Reference Oscillator:

OCXO: Temperature Stability ± 0.05 ppm, Frequency Stability ± 0.3 ppm over first year

TCXO: Temperature Stability ± 0.05 ppm, Frequency Stability ± 1 ppm over first year

Operating Voltage: 8 V to 30 V DC

Operating Temperature: 50°C ambient

Size: 137 mm x 167 mm x 52 mm

Weight: 1.45 kg with battery and SSD
