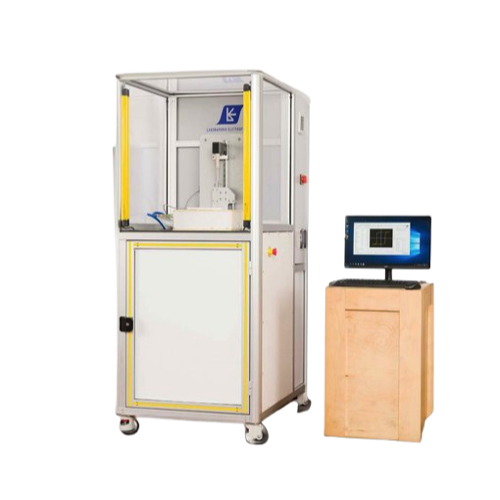

Laboratorio Elettrofisico TRUE PULSE Pulsed Field Magnetometer (PFM) (5.2 T)

General

Type of Material: Any PM material

Shape of the Sample: Any shape

Max Size: 10 mm diameter, 6 mm height (with bigger coil)

Minimum Size: 0.3 mm² (with X-small coil)

Minimum Magnetic Moment: 2.8 • 10⁻⁴ A•m² (with X-small coil)

Max Applied Field: 5.2 T

Minimum Cycle Time: 10 s

Cycle Type: Single pulse or double pulse

Measurable Quantities: Br, HcB, HcJ, Jsat, Jd, BHmax, BA, HA, Hknee, HDx

Typical Accuracies: Br: ±2%, HcB: ±2%, HcJ: ±2%, BHmax: ±3%, Jd: ±1% (lower accuracy with X-small coil, depending on the magnet size)

Cabinet

Dimensions: L 1070 x W 920 x H 1895 mm

Weight: 400 kg

Electrical: 220 VAC 50/60 Hz, 25 A

Chiller: External, automatic with software

Available Ports: 2 USB, 1 LAN, 1 HDMI

Datasheet
