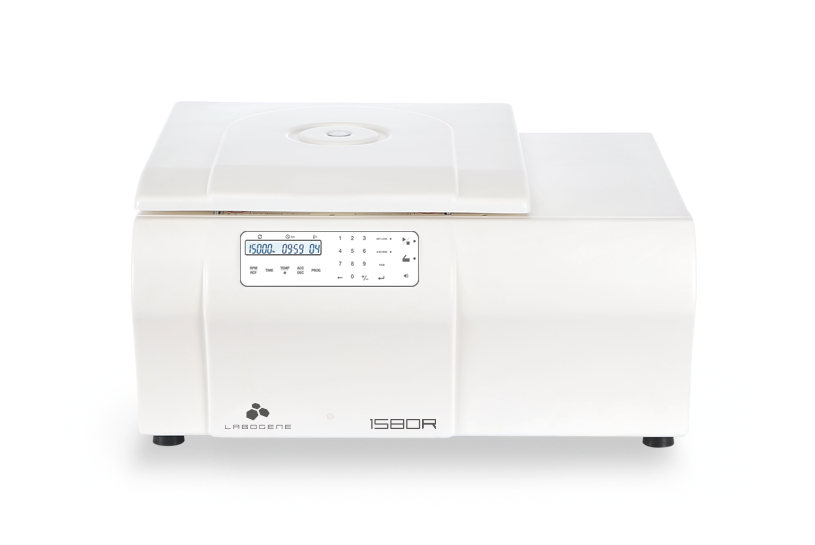

LaboGene 1580R Multi-Purpose Centrifuge (15,000 RPM / 25,910 RCF)

Max. capacity (Fixed Angle Rotor): 30 × 1.5/2.0 mL; 24 × 15 mL; 8 × 50 mL; 6 × 85 mL; 6 × 250 mL

Max. capacity (Swing Rotor): 4 × 20 × 15 mL; 4 × 8 × 50 mL; 4 × 2 × 85 mL; 4 × 250 mL; 4 × 400 mL blood bag; 4 × 500 mL / 4 × 750 mL; 4 × 4 × MTP

Max. RPM/RCF (Fixed Angle Rotor): 15,000 / 25,910

Max. RPM/RCF (Swing Rotor): 4,000 / 3,667

Temperature range: –20°C to 40°C

FAST cool button: Yes

Time control: Pulse, timed (<10 hr), continuous

RCF/RPM conversion: Yes

Noise level: ≤ 60 dB

Acceleration ramp: 5

Deceleration ramp: 5

Program memory: 100

Rotor identification: Automatic

Imbalance cutout: Yes

Display: Blue LCD

Safety lid lock: Yes

Lid drop protection: Yes

Power supply: 220V/50–60Hz (110V optional)

Power requirement: 2.5 kVA

Dimensions (W × D × H): 770 × 650 × 390 mm

Weight without rotor: 93 kg

CE mark: Yes
