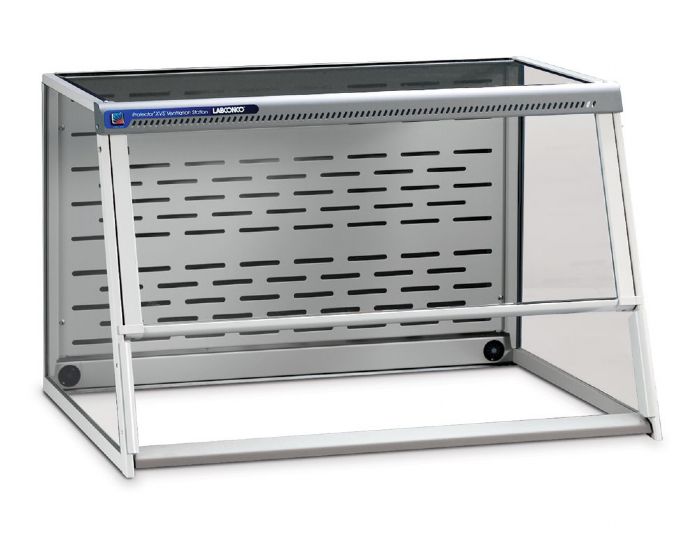

Labconco 4866010 Protector XVS Ventilation Station (6’)

Attributes

Product Subcategory: Educational

Nominal Width: 6'

Region: Not Applicable

Air Usage/Static Pressure with Sash At Working Height: At 60 fpm, exhausts 230 CFM at .12" H20 static pressure. At 80 fpm, exhausts 305 CFM at .21" H20 static pressure.

Blower Requirements: Remote blower required

Conformance: ANSI Z9.5, Modified ASHRAE 110, SEFA 1

Lighting: None. Light Kit Accessory available.

Style: Benchtop

Specifications

Weight: 340.0 lbs

Weight metric: 154.0 kg

Dimensions: 72.0" w x 29.0" d x 22.75" h

Dimensions metric: 182.9 cm x 73.7 cm x 57.8 cm

Electrical: N/A
