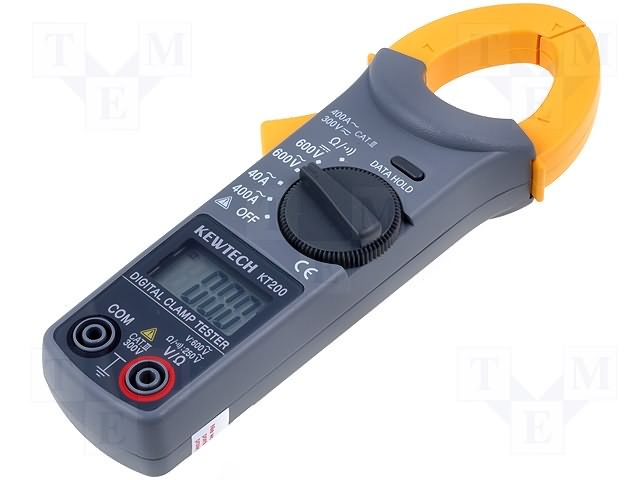

KYORITSU KT200 Digital 400A AC Clamp Mete (400A)

AC A: 40.00/400.0A

±2.0%rdg±6dgt(50/60Hz)

AC V: 400.0/600V(Auto-ranging)

±2.0%rdg±5dgt(50/60Hz)

DC V: 400.0/600V(Auto-ranging)

±1.5%rdg±5dgt

Ω: 400.0/4000Ω(Auto-ranging)

±2.0%rdg±5dgt

Continuity buzzer: buzzer sounds below 50±35Ω

Conductor size: φ30mm max.

Applicable standards: IEC 61010-1 CAT III 300V(ACA), CAT II 600V Pollution degree 2

IEC 61010-2-032, IEC 61326-1

Power source: R03(1.5V)(AAA) × 2

*Continuous measuring time: Approx. 200hours (Auto power save: approx. 10 minutes)

Dimensions: 184(L) × 68.6(W) × 38.5(D)mm

Weight: Approx. 190g(including batteries)

Included Accessories: 7066A (Test leads), R03 (AAA) × 2, Instruction Manual

Optional Accessories: 9105 (Carrying case)
