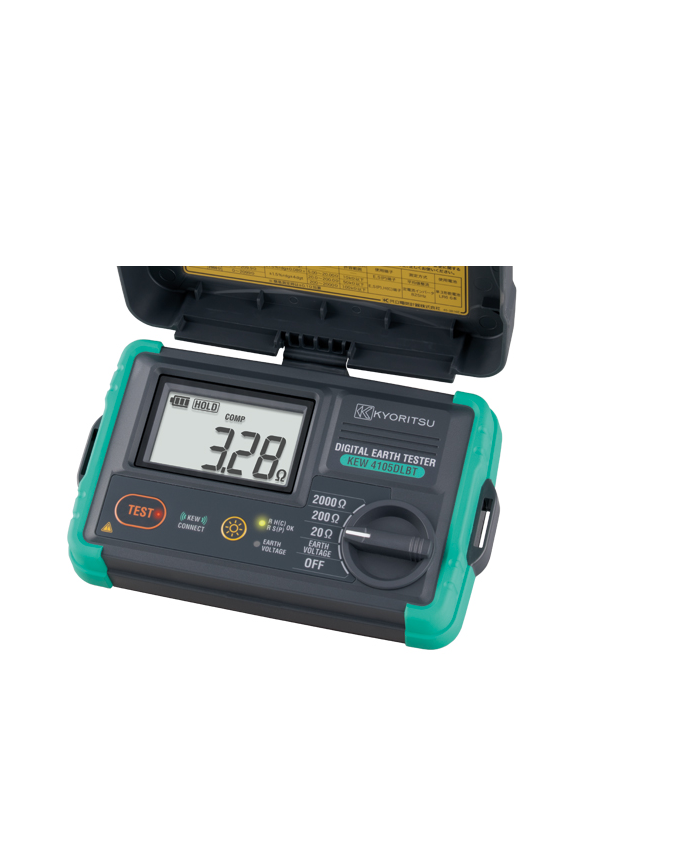

KYORITSU KEW 4105DLBT-H Digital Earth Tester (0.00~ 2000 Ω)

Earth resistance measurement: 20Ω, 200Ω, 2000Ω

Measuring range: 0.00 to 2000 Ω

Display range: 0.00 to 20.99 Ω, 0.0 to 209.9 Ω, 0 to 2099 Ω

Accuracy: ±1.5%rdg±0.08 Ω*2, ±1.5%rdg±4dgt

Auxiliary earth resistance: <10kΩ, <50kΩ,  <100kΩ

Comparator reference value: 10Ω, 100Ω, 500Ω

Earth voltage measurement

Measuring range: 0 to 300 V AC (45 to 65Hz), ±0 to ±300 V DC

Display range: 0.0 to 314.9 V, 0.0 to ±314.9 V

Accuracy: ±1%rdg±4dgt

Applicable Standards:

IEC 61010-1 CAT Ⅳ 100V / CAT Ⅲ 150V / CAT Ⅱ 300V Pollution degree 3

IEC 61010-2-030, IEC 61010-031, IEC 61557-1, 5

IEC 60529 (IP67), IEC 61326-1, 2-2

Communication interface: Bluetooth®5.0

Power source: LR6(AA)(1.5V) × 6

Dimension: 121(L) × 188(W) × 59(D) mm (including case lid)

Weight: Approx. 690g (including batteries and case lid)

Accessories:

7127B (Simplified measurement probe)

7266 (Earth resistance test leads [red:20m, yellow:10m, green:5m/1set])

8041 (Auxiliary earth spikes [2spikes/1set])

9121 (Shoulder strap)

9197 (Hard case)

LR6(AA) × 6, Instruction manual
