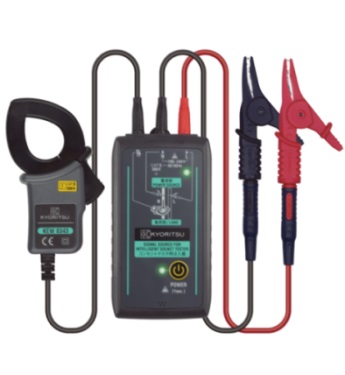

KYORITSU 8343 Signal Source for Intelligent Socket Tester

* Conductor size : Ø24mm max.

* Test voltage

- Freq : Approx. 1.8kHz

- TRMS : Approx. 20mV rms

- Allowable input range: 300V AC (50/60Hz) continuous / 30A AC (50/60Hz) continuous

- Applicable standardsIEC 61010-1, 61010-031, 61010-2-032 CAT Ⅲ 300V, Pollution degree 2, IEC 60529(IP40)

- Operating temperature & humidity range : -10 to 50℃, RH 85% or less

- Storage temperature & humidity range : -20 to 60℃, RH 85% or less

- Power source: LR6 (AA)(1.5V) × 6

- Dimensions

+ Uni : 112(L) × 61(W) × 42(D) mm

+ Test voltage injection clamp : 100(L) × 60(W) × 26(D) mm

+ Cable length : Approx. 1.5m

- Weight : Approx. 520g (including batteries)

- Included Accessories

+ 7157B (Alligator clips)

+ 9096 (Carrying case)

+ LR6 (AA) × 6, Instruction manual
