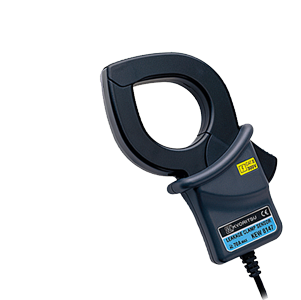

Kyoritsu 8147 Leakage & Load current clamp sensors
USD 228.52
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
| Conductor size | Ø40mm |
|---|---|
| Rated current | AC 70A |
| Output voltage | AC 3500mV/70A (AC 50mV/A) |
| Accuracy | 0 - 40A ±1.0%rdg±0.1mV (50/60Hz) ±2.0%rdg±0.2mV (40Hz - 1kHz) 40 - 70A ±5.0%rdg (50/60Hz) ±10.0%rdg (45Hz - 1kHz) |
| Cable length | Approx. 2m |
| Output connector | MINI DIN 6pin |
| Output impedance | Approx. 100Ω |
| Applicable standards | IEC 61010-1:2001, IEC 61010-2-032:2002, CAT III 300V pollution degree 2 |
| Operating temperature & humidity range | 0 - 50ºC, less than 85% RH (without condensation) |
| Dimensions | 128(L) x 81(W) x 36(D) mm |
| Weight | Approx.240g |
| Included Accessories | 9095 (Portable case), Instruction manual, Cable marker |
| Optional Accessories | 7146 (Banana Ø4 adjuster plug) 7185 (Extension Cable) |
