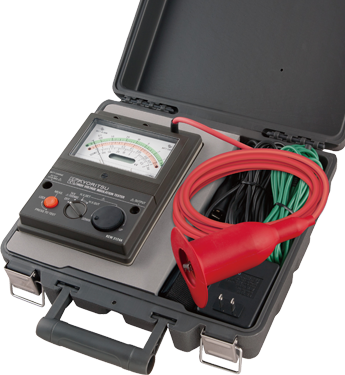

KYORITSU 3124A High Voltage Insulation Tester (10kV/100GΩ)
ManufacturerKYORITSU(View more products from this manufacturer)
Model3124A
OriginJapan
Warranty12 months
USD 1,635.65
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
| DC Test Voltage | 1k~10kV variable | 1000V |
| Measuring Ranges (automatic change) | 1.6GΩ/100GΩ (autoranging) | 100MΩ |
| First Effective Measuring Ranges Accuracy | 0.05~50GΩ | 1~100MΩ |
| |±10% rdg | ||
| Other ranges Accuracy | |±1% of scale length | |
| Output Voltage and Set Voltage Indicate | DC 0~10kV |±2%rdg±2dgt | |
| Withstand Voltage | 5000V AC for 1 minute | |
| Power Source | Ni-Cd rechargeable battery (1.2V) × 8 | |
| Dimensions | 200(L) × 140(W) × 80(D)mm | |
| Weight | 1.5kg approx. | |
| Accessories | 7082 (Lead for recorder) 7083 (Lead for battery charging) 7084 (Earth and guard leads) 8075 (120V) or 8080 (220V) (Battery charger) 9112 (Hard Carrying Case) Ni-Cd rechargeable battery × 8 Instruction Manual | |
