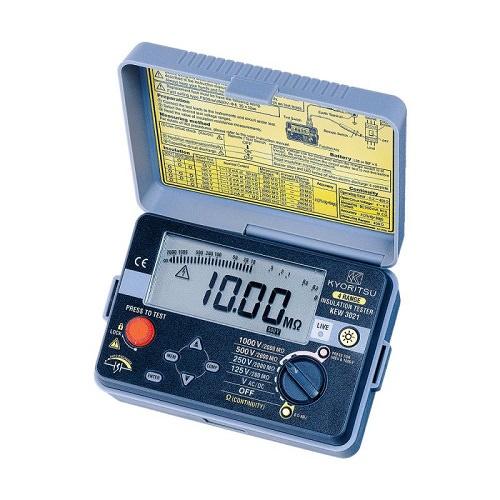

KYORITSU 3021 Digital Insulation / Continuity Tester (1000V/2GΩ)
ManufacturerKYORITSU(View more products from this manufacturer)
Model3021
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
| Insulation resistance | ||||
| Test voltage | 125V | 250V | 500V | 1000V |
| Measuring range (Auto range) | 4.000/40.00/ 200.0MΩ | 4.000/40.00/400.0/2000MΩ | ||
| First Effective Measuring range | 0.1~20MΩ | 0.1~40MΩ | 0.1~200MΩ | 0.1~1000MΩ |
| Mid-scale value | 5MΩ | 50MΩ | ||
| Accuracy | |±2%rdg±6dgt | |||
| Second effective measuring range lower | 0~0.099MΩ | |||
| Second effective measuring range upper | 20.01~ 200.0MΩ | 40.01~ 2000MΩ | 200.1~ 2000MΩ | 1001~ 2000MΩ |
| Accuracy | |±5%rdg±6dgt | |||
| Rated current | DC 1~1.2mA | |||
| Output short circuit current | 1.5mA max | |||
| Ω/Continuity | ||||
| Auto range | 40.00/400.0Ω | |||
| Accuracy | |±2%rdg±8dgt | |||
| Output Voltage on open circuit | 5V±20% | |||
| Output short circuit current | DC 220±20mA | |||
| Fuse | Quick acting ceramic fuse 0.5A/600V (Ø6.35×32mm) | |||
| AC Voltage | ||||
| Range | AC 20~600V (50/60Hz) DC -20~-600V/+20~+600V | |||
| Accuracy | |±3%rdg±6dgt | |||
| General | ||||
| Applicable standards | IEC 61010-1 CAT.III 600V, IEC 61557-1,2,4, IEC 61326-1 (EMC), IEC 60529 (IP40) | |||
| Dimensions / Weight | 105(L) × 158(W) × 70(D)mm / 600g approx. | |||
| Power source | R6P×6 or LR6×6 | |||
| Accessories | 7150A (Remote control switch set), 9121 (Shoulder strap), R6P (AA)×6, Instruction Manual | |||
| Optional | 7115 (Extension Probe), 8016 (Hook type prod), 8923 (Fuse [0.5A/600V]), 9089 (Carrying Case) | |||
Warranty: 12 months
Manufacturer: Kyoritsu - Japan
Origin: Japan
