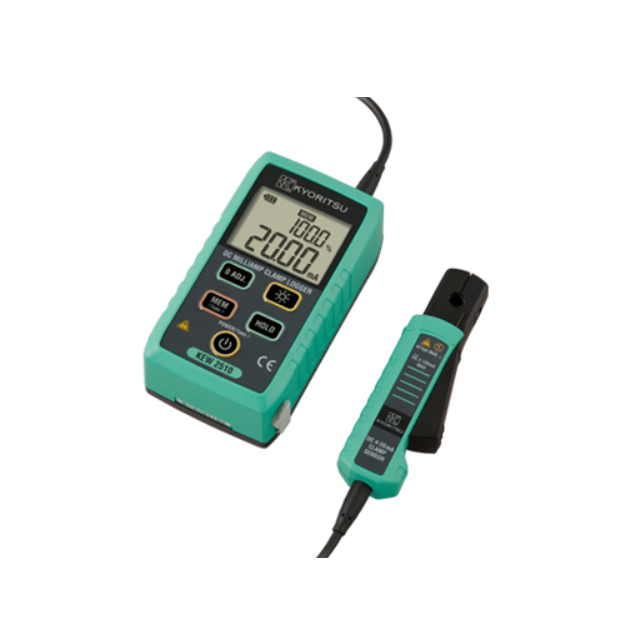

KYORITSU 2510 KEW DC Milliamp Clamp Logger (AC 100mA)

AC A: 20/100mA(Auto ranging)

±0.2%rdg±5dgt (0.00mA - 21.49mA)

±1.0%rdg±5dgt (21.0mA - 120.0mA)

Conductor size: φ6mm max.

Analog output: Recorder: DC1000mV against DC100mA

Applicable standards:

IEC 61010-1, Pollution degree 2

IEC 61010-2-032, IEC 61326-1(EMC)

IEC 60529 IP40, EN50581(RoHS)

Operating temperature & humidity range: -10 - +50℃ <85%

Storage temperature & humidity range: -20 - +60℃ <85%

Power source: R6/LR6(AA) (1.5V) x4 (Alkaline LR6 is recommended.)

External supply (AC adapter MODEL8320)

communication interface: Bluetooth Ver2.1+EDR Class2

Dimensions / Weight:

111(L)x61(W)x46(D)mm : Display unit

104(L)x33(W)x20(D)mm : Sensor

700mm : Sensor Cable

Approx.: 310g(including batteries)

Included Accessories: 8320(AC adapter), KEW Windows for 2510(Software), 9096(Carrying case), LR6(AA)x4, Instruction manual, Software installation manual

Optional Accessories: 7256(Output cord)
