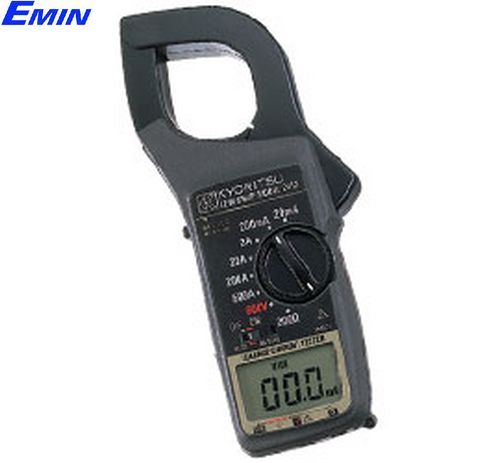

KYORITSU 2412 Leakage Clamp Meter (20/200mA/2/20/200/500A)
ManufacturerKYORITSU(View more products from this manufacturer)
Model2412
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
| AC A (50/60Hz) | 20/200mA/2/20/200/500A |±1.5%rdg±5dgt (20/200mA/2A) |±2%rdg±5dgt (20/200A) |±2.5%rdg±5dgt (500A) | ||
| AC A (WIDE) | 20/200mA/2/20/200/500A |±1%rdg±3dgt [50/60Hz], |±5%rdg±5dgt [40~400Hz] (20/200mA/2A) |±1.5%rdg±3dgt [50/60Hz], |±5%rdg±5dgt [40~400Hz] (20/200A) |±2%rdg±3dgt [50/60Hz], |±5%rdg±5dgt [40~400Hz] (500A) | ||
| AC V | 600V |±2%rdg±5dgt (50/60Hz) |±5%rdg±5dgt (40~400Hz) | ||
| Ω | 200Ω|±1.5%rdg±5dgt | ||
| Conductor Size | Ø40mm max. | ||
| Effect of External Stray Magnetic Field Ø15mm 100A | 10mA AC max. | ||
| Frequency Response | 40~400Hz | ||
| Output |
| ||
| Withstand Voltage | 3700V AC for 1 minute | ||
| Power Source | 6F22 (9V) × 1 or AC Adaptor | ||
| Dimensions | 209(L) × 96(W) × 45(D)mm | ||
| Weight | 450g approx. | ||
| Accessories | 7066A (Test leads) 9072 (Carrying case) 8025 (Plug for output jack) 6F22 × 1 Instruction Manual | ||
| Optional | 8008 (Multi-Tran)* 8022 (AC adaptor) (110V) 8023 (AC adaptor) (220V) 7014 (Output cord) |
