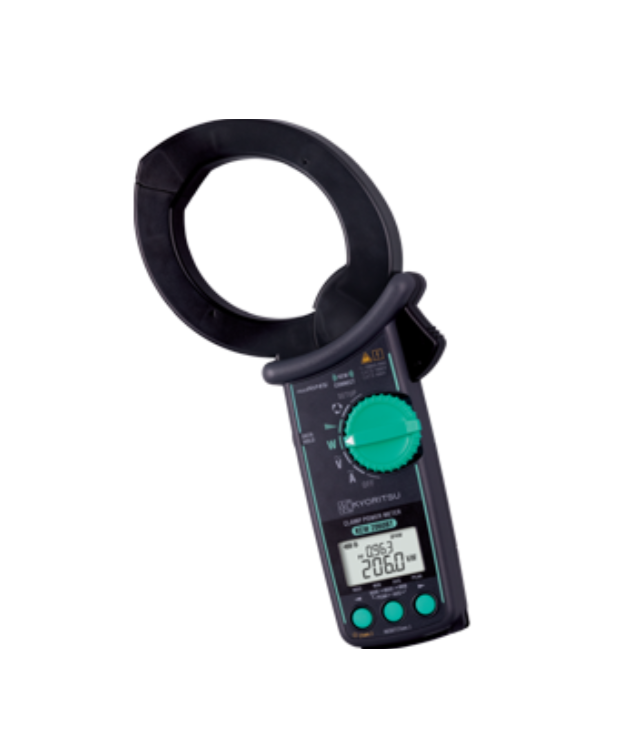

KYORITSU 2060BT KEW Clamp Power Meter (1000VAC, 1000AAC, 1000kW, Bluetooth)

Wiring connections: 1P2W, 1P3W, 3P3W, 3P4W

Measurements and parameters: Voltage, Current, Frequency, Active power, Reactive power,

Apparent power, Power factor(cosθ), Phase angle, Harmonics(THD-R/THD-F), Phase rotation

AC Voltage

Range: 1000V

Accuracy:

±0.7%rdg±3dgt (40.0~70.0Hz)

±0.3%rdg±5dgt (70.1~1KHz)

Crest factor: 1.7 or less

AC Current

Range: 40.00/400.0/1000A (Auto-ranging)

Accuracy:

±1.0％rdg±3dgt (40.0~70.0Hz)

±2.0％rdg±5dgt (70.1~1kHz)

Crest factor: 3 or less on 40.00A/400.0A range, 3 or less 1500A peak on 1000A range

Frequency

Display range: 40.0~999.9Hz

Accuracy: ±0.3％rdg±3dgt

Active power

Range: 40.00/400.0/1000kW (Auto-ranging)

Accuracy: ±1.7%rdg±5dgt (PF1, sine wave, 45～65Hz) influence of phase angle within ±3.0°

Apparent power

Range: 40.00/400.0/1000kVA (Auto-ranging)

Reactive power

Range: 40.00/400.0/1000kVar (Auto-ranging)

Power factor

Display range: -1.000~0.000~1.000

Phase angle (1P2W only)

Display range: -180.0~0.0~+179.9

Harmonics

Analysis order: 1st~30th order

Accuracy:

±5.0％rdg±10dgt (1~10th)

±10％rdg±10dgt (11~20th)

±20％rdg±10dgt (21~30th)

Phase rotation: ACV 80~1100V (45~65Hz)

Other functions: MAX/MIN/AVG/PEAK, Data hold, Back light, Auto power off

General

Communication interface: Bluetooth®5.0,

Android™5.0 or more, iOS 10.0 or more ※1

Power source: LR6 (AA) (1.5V) ×2

Continuous measuring time: Approx. 58 hours

Conductor size: φ75 mm (max) and busbar of 80 × 30 mm or less

Dimensions / Weight: 283(L) × 143(W) × 50(D) mm / Approx. 590g (including batteries)

Applicable Standards:

IEC 61010-1,

IEC 61010-2-032 (main unit) / IEC 61010-031 (test leads)

CAT IV 600 V / CAT III 1000 V Pollution degree 2,

IEC 61326 (EMC) Class B, EN50581 (RoHS), EN 301 489-1,

EN 300 328, EN 62479, IEC 60529 (IP40)

Included Accessories: 7290 (Test leads), 9198 (Soft Case), LR6(AA)×2, Instruction Manual
