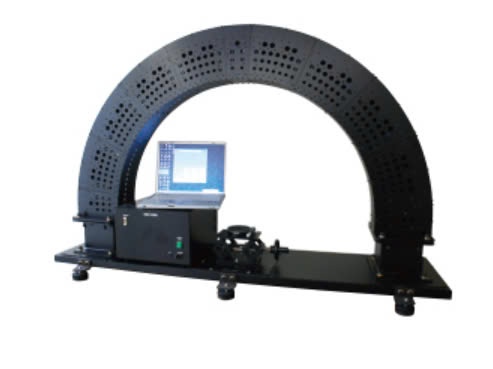

Kyoritsu Electric DEF-9900 Flash light distribution tester (1,9~9.999 lx･s)

Measuring objects: LED flash light LED fixed light Xenon flash light

Measuring point: 25 points

Measuring range

Exposure: 1.9 to 9,999 lx･s

Guide number: 1 to 70 Gno

F number: 1 to 70 Fno

Aperture value AV：-10.00 to +10.00 AV

Luminance: 0.008 to 1,850 Klx

Setting items:

Film sensitivity (ISO):25,50,100,200,400,800,1600,3200, 64,160,1000

Flash count: 1 to 30 times

                                         (Pre-flash, 0-29 times)

Measuring distance: 0.5m

Measuring accuracy: ±0.1EV

Power supply: AC100~240V (50/60Hz)/170VA

Dimensions: 1,400(W)×1,750(H)×600(D)mm・180kg
