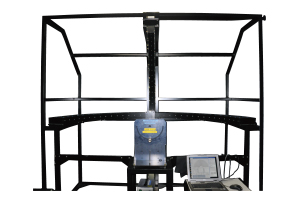

Kyoritsu Electric DEF-9300 Flash light distribution tester (1.9 ~ 9,999 lx･s)

Measuring objects: Xenon flash light

Measuring point: 65 points

Measuring range

Exposure: 1,9 to 9.999 lx･s

Guide number: 1 to 70 Gno

F number: 1 to 70 Fno

Aperture value AV：-10.00 to +10.00 AV

- Setting items

Film sensitivity (ISO):25,50,100,200,400,800,1600,3200, 64,160,1000

Flash count: 1 to 16 times (Pre-flash, 0-15 times)

Measuring distance: 1.0m

Measuring accuracy: ±0.05EV

Power supply: AC100~240V (50/60Hz)・270VA

Dimensions: 2,410(W)×2,430(H)×1,623(D)mm・340Kg
