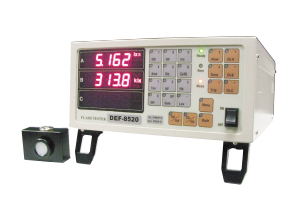

Kyoritsu Electric DEF-8520 Flash tester (0.002~ 2 klx (LED) / 1 ~ 5,000 klx (Xe))

Measuring ranges

Maximum luminance Luminance: 0.002~ 2 klx / 1 ~ 5,000 klx

Exposure: 0.01 ~ 2,000 lx･s / 0.1 ~9,999 lx･s

Flash duration time:1~1,000ms 0.01~1,000ms

Guide number:0.07~32 Gno. 0.25~50 Gno.

F number:0.07~32 Fno. 0.25~50 Fno.

Aperture value AV:-7.6~+8.6 AV 0~+10 AV

Exposure error ⊿EV (Exposure): -10~+10 EV -10~+10 EV

Measuring accuracy: ±0.1EV

Power supply: AC100~240V (50/60Hz)/40VA

Dimensions: 240(W)×130(H)×320(D)mm, 5kg

External interface: RS232C
