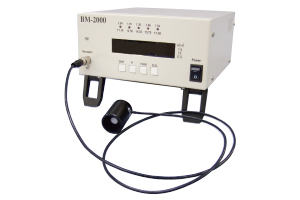

Kyoritsu Electric BM-2000 Luminance meter (0.001 ~ 110.000 cd/㎡)

Device under test: Standard diffusing surface

Measuring item: cd/㎡（nit）, rlx, LV

Measuring range: 0.001 〜 110,000cd/㎡

Measuring accuracy: ±1% (over the 0.01cd/㎡)

Photo detector: Silicon photo diode

Indication: LED (6 figures)

Other functions:

K Value Selection

[Meter indication] 11.14 12.50 14.03 15.75 17.68

[Feet indication] 1.04 1.16 1.30 1.46 1.64

Data hold, Data out

Power supply: AC100~240V (50/60Hz)/10VA

Dimensions: 180(W)×100(H)×200(D)mm・3kg

External interface: RS232C
