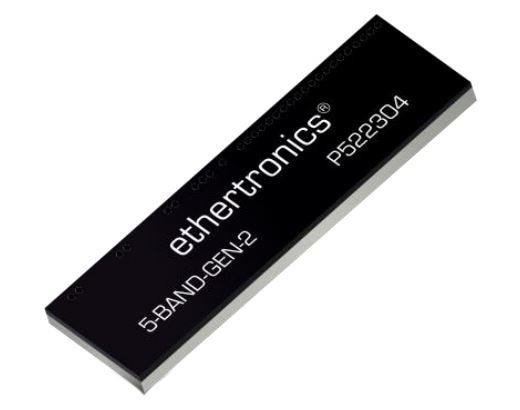

KYOCERA AVX P522304 Passive Antenna Cellular PCB

Gain: 0.7 dBi

VSWR: 2.7:1

Width: 9 mm

Height: 3.2 mm

Length: 35 mm

Impedance: 50 Ohms

Application: Medical Applications, Home Automation, Smart Metering, MWM, Firstnet, Automotive, Healthcare, POS, Tracking

Unit Weight: 2.100 g

Polarization: Linear

Power Rating: 2 W

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 2 Band

Center Frequency: 892 MHz, 1.94 GHz

Mechanical Style: Chip

Maximum Frequency: 2.17 GHz

Minimum Frequency: 824 MHz

Termination Style: SMD/SMT

Protocol - WiFi - 802.11: LoRa, SigFox, LPWA, RPMA

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), Cat-M
