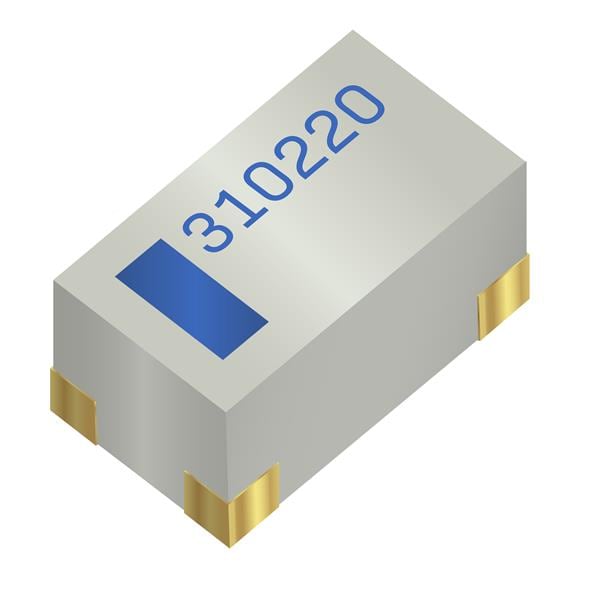

KYOCERA AVX M310220 Passive Antenna WiFi/BT Ceramic

Gain: - 1.3 dBi

VSWR: 2:1

Style: Ceramic

Width: 1.5 mm

Height: 1.08 mm

Length: 3 mm

Impedance: 50 Ohms

Technology: BT / ISM / WiFi / Zigbee

Application: Embedded Design, Cellular, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II

Unit Weight: 305.444 mg

For Use With: M310220-01

Polarization: Linear

Power Rating: 500 mW

Mounting Style: PCB Mount

Number of Bands: 1 Band

Center Frequency: 2.4 GHz

Mechanical Style: Chip

Maximum Frequency: 2.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Protocol - WiFi - 802.11: WiFi, WLAN

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
