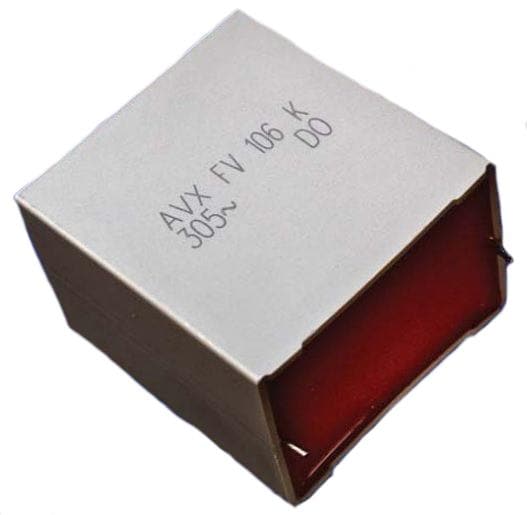

KYOCERA AVX FVC66H0474M22 Metallized Polypropylene Film Capacitors 305V .47uF 20% 50Hz/ 60Hz
ManufacturerKYOCERA AVX(View more products from this manufacturer)
ModelFVC66H0474M22
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Life: 100000 Hour
Width: 10 mm (0.394 in)
Height: 16 mm (0.63 in)
Length: 18 mm (0.709 in)
Tolerance: 20 %
Dielectric: Polypropylene (PP)
Lead Style: Straight
Capacitance: 0.47 uF
Unit Weight: 6.163 g
Lead Spacing: 15 mm (0.591 in)
Lead Diameter: 0.8 mm
Number of Pins: 2 Pin
Capacitance - nF: 470 nF
Capacitance - pF: 470000 pF
Termination Style: Radial
Voltage Rating AC: 305 VAC
Maximum Operating Temperature: + 110 C
Minimum Operating Temperature: - 40 C
