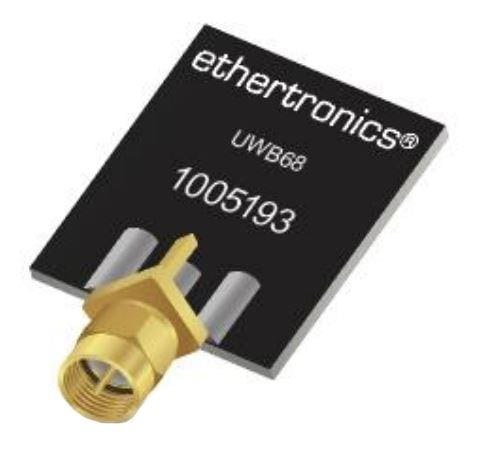

KYOCERA AVX 1005193-B02 Passive Antenna UWB PCB Vertical SMA (female) Connector

Gain: 6 dBi

VSWR: 2:1

Style: Mini Board

Width: 18.6 mm

Height: 0.8 mm

Length: 20.6 mm

Impedance: 50 Ohms

Application: Access Point, Embedded Design, Gateway, Handheld, Healthcare, Industrial Devices, M2M, OBD-II, Radar, Smart Grid, Telematics, Tracking

For Use With: Agriculture, Automotive, Digital Signane, Healthcare, Radar, Smart Home, Telematics, Tracking

Polarization: Linear

Power Rating: 10 W

Mounting Style: Panel Mount

Electrical Type: Embedded

Number of Bands: 1 Band

Center Frequency: 7.25 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 8.5 GHz

Minimum Frequency: 6 GHz

Termination Style: Connector

Antenna Connector Type: SMA Female

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
