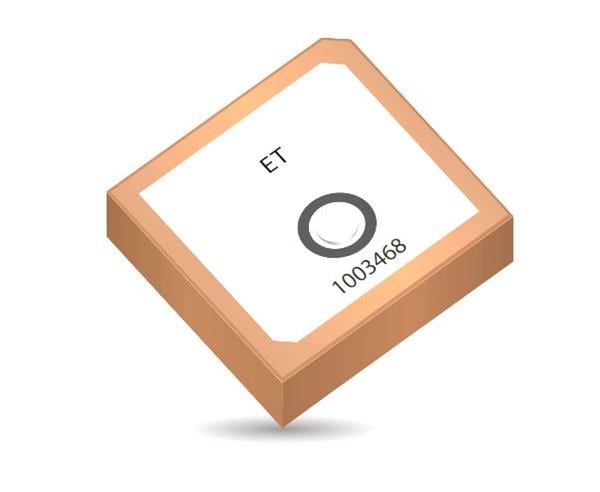

KYOCERA AVX 1003468 Passive Antenna ISM 2.4GHz 18x18x4mm Ceramic Patch

Gain: 3.83 dB

VSWR: 2:1

Style: Ceramic

Width: 18 mm

Height: 4 mm

Length: 18 mm

Impedance: 50 Ohms

Application: Embedded Design, POS, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II

Polarization: RHCP

Mounting Style: Adhesive Mount

Number of Bands: 1 Band

Center Frequency: 2.4425 GHz

Mechanical Style: Patch

Maximum Frequency: 2.485 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Pin

Protocol - WiFi - 802.11: WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
