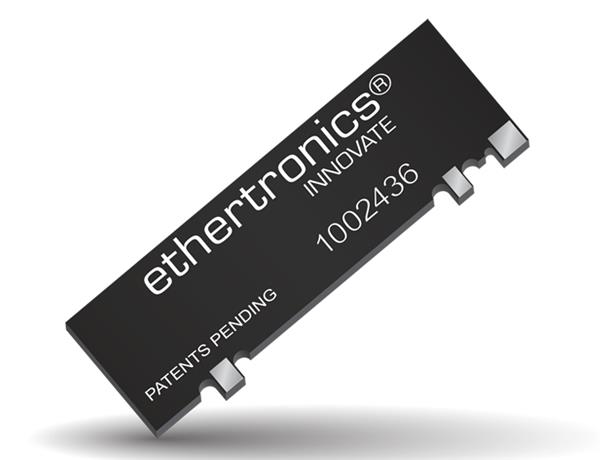

KYOCERA AVX 1002436 Passive Antenna 1000 SERIES 24 INCH X 36 INCH

Gain: 2.3 dBi, 3.2 dBi, 3 dBi

VSWR: 3.5:1, 2.5:1, 2.5:1

Style: Ceramic

Width: 19.6 mm

Height: 1.6 mm

Length: 50.6 mm

Impedance: 50 Ohms

Application: Medical Applications, Home Automation, Smart Metering, MWM, Firstnet, Automotive, Healthcare, POS, Tracking

Polarization: Linear

Power Rating: 2 W

Mounting Style: PCB Mount

Electrical Type: Embedded Dipole

Number of Bands: 7 Band

Center Frequency: 700 MHz, 750 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: SMD/SMT

Protocol - WiFi - 802.11: LoRa, SigFox, LPWA, RPMA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), Cat-M
