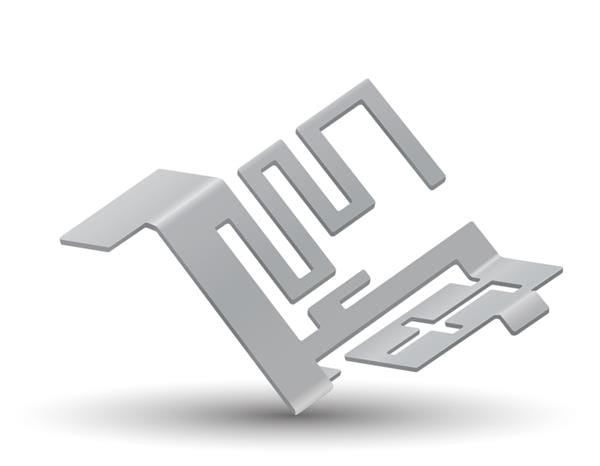

KYOCERA AVX 1002295 Passive Antenna Stamped Metal WiFi/B T Vertical Polarized

Gain: 3.6 dBi, 5.1 dBi

VSWR: 2.0:1

Style: Metal

Width: 16.1 mm

Height: 10.55 mm

Length: 15.6 mm

Impedance: 50 Ohms

Technology: WLAN

Application: Embedded Design, Cellular, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II

Polarization: Linear

Power Rating: 500 mW

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 3 Band

Center Frequency: 2.4425 GHz, 5.4875 GHz, 5.8875 GHz

Mechanical Style: Stamped

Maximum Frequency: 2.485 GHz

Minimum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Protocol - WiFi - 802.11: WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
