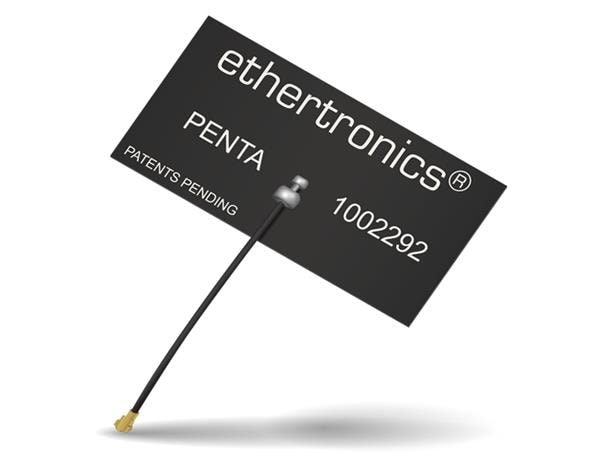

KYOCERA AVX 1002292 Passive Antenna ETHERTRONICS BUY/RESALE

Gain: 1.2 dBi, 5 dBi

VSWR: 2.8:1, 3:1

Style: T-Bar Flex

Width: 42.1 mm

Height: 0.2 mm

Length: 85.2 mm

Impedance: 50 Ohms

Cable Type: 28.5 mm RF1.13

Application: Medical Applications, Home Automation, Smart Metering, MWM, Firstnet, Automotive, Healthcare, POS, Tracking

Unit Weight: 46.050 g

Cable Length: 28.5 mm

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 7 Band

Center Frequency: 700 MHz,750 MHz, 850 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2700 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 2.69 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: U.FL

Protocol - WiFi - 802.11: LoRa, SigFox, LPWA, RPMA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), Cat-M
