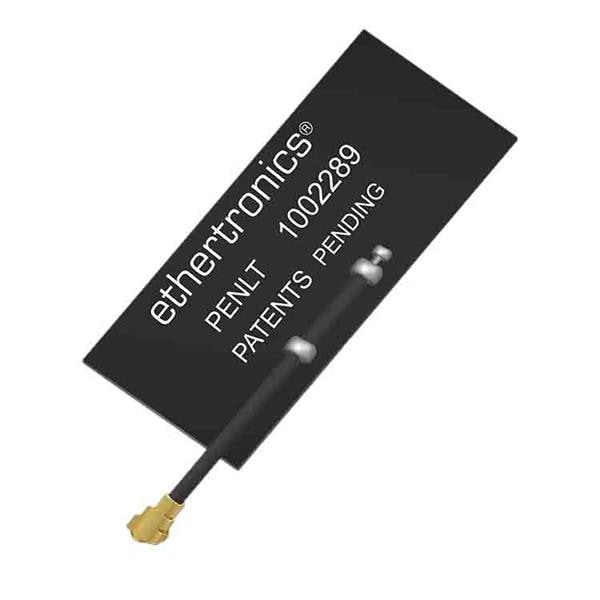

KYOCERA AVX 1002289F0-AA10L0050 PCB Antennas LTE/LPWA/cellular FP C 50mm Cable MHF Con

Gain: 2.9 dBi, 4.3 dBi

VSWR: 2.5:1

Style: I-Pad Flex

Width: 25.1 mm

Height: 0.2 mm

Length: 53.6 mm

Impedance: 50 Ohms

Cable Type: 1.13 Coax

Application: 2G, 3G, 4G, 5G, LTE Applications

Cable Length: 7.6 mm

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 2 Band

Mechanical Style: PCB Trace

Ground Plane Size: 75 mm x 140 mm

Maximum Frequency: 2.7 GHz

Minimum Frequency: 700 MHz

Termination Style: Connector

Antenna Connector Type: U.FL

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIot, LTE)
