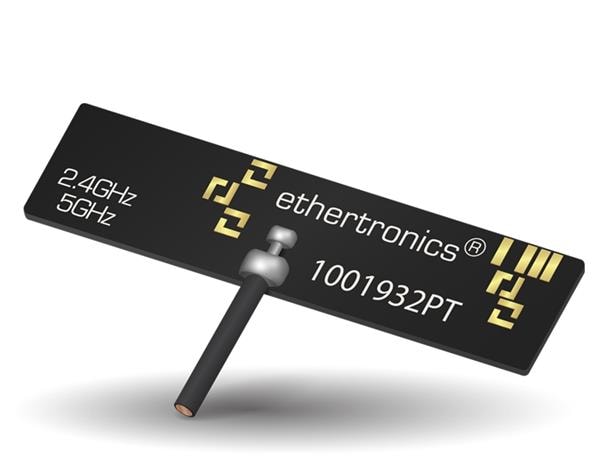

KYOCERA AVX 1001932PT-AA10L0100 Passive Antenna Tunable WiFi 6E/BT P CB 100mm Cable MHF C

Gain: 2.5 dBi, 4.4 dBi

VSWR: 2:1

Style: T-Bar Flex

Width: 8.5 mm

Height: 1.6 mm

Length: 35.2 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Application: Embedded Design, Cellular, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II

Unit Weight: 800 mg

Cable Length: 100 mm

Polarization: Linear

Power Rating: 500 mW

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 2 Band

Center Frequency: 2.4425 GHz, 7.25 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 5.825 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: U.FL

Protocol - WiFi - 802.11: WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
