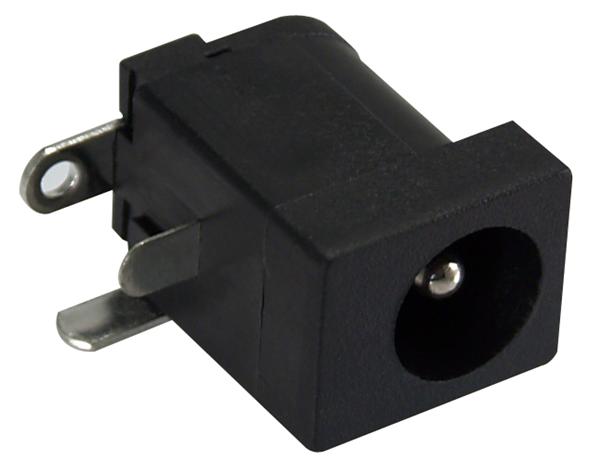

Kycon KLDVHCX-0202-B-LT Jacks VRTCL PWR JACK 2.5MM PCB LOCKING TYPE
ManufacturerKycon(View more products from this manufacturer)
ModelKLDVHCX-0202-B-LT
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Black
REACH - SVHC: Details
Connector Type: DC Power Jacks
Contact Gender: Female
Current Rating: 5 A
Mounting Angle: Straight
Mounting Style: Panel
Voltage Rating: 24 VDC
Contact Plating: Tin
Contact Material: Brass, Copper Alloy
Housing Material: Polybutylene Terephthalate (PBT)
Center Pin Length: 4.4 mm
Termination Style: Through Hole
Flammability Rating: UL 94 V-0
Insulation Resistance: 50 MOhms
Inside Contact Diameter: 2.5 mm
Outside Contact Diameter: 5.7 mm
