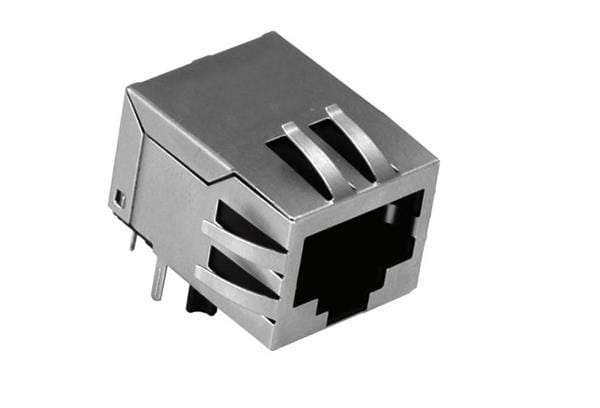

Kycon G8X-188S7-BP Magnetic Jack RJ45 8P8C Mod-Jack w 10/100 Magn. and PO

Color: Black

Gender: Jack (Female)

Shielding: Shielded, EMI Fingers

USOC Codes: RJ45

Application: 10/100 Base-T PoE

Configuration: 1x1

Mating Cycles: 750 Cycles

Tab Direction: Tab Down

Mounting Angle: Right Angle

Mounting Style: Through Hole

Contact Plating: Gold

Number of Ports: 1 Port

Contact Material: Phosphor Bronze

Termination Style: Solder

Number of Contacts: 8 Contact

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Performance Category: Cat 5

Insulation Resistance: 500 MOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
