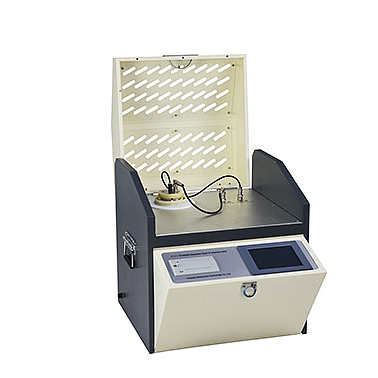

Resistivity and dielectric loss tester KVTESTER ZC-211

Product Parameters

Supply voltage

AC 220V ± 10%

Power frequency

50Hz/60Hz ± 1%

Measuring range

Capacitance 5pF - 200pF

Relative capacitance 1.000~30.000

Dielectric dissipation factor 0.00001 ~100

DC Resistivity 2.5 MΩm~ 20 TΩm

Measurement accuracy

Capacitance ± (1% reading + 0.5pF)

Relative capacitance ± 1% reading

Dielectric dissipation factor ± (1% reading + 0.0001)

DC Resistivity ±10% reading

Resolving power

Capacitance 0.01pF

Relative capacitance 0.001

Dielectric dissipation factor 0.0001

Temperature range

0~125 ℃

Temperature measuring error

± 0.5 ℃

AC test voltage

500~ 2200V continuously adjustable Frequency 50Hz

DC test voltage

0~500V continuously adjustable

Consumption

100 W

Outline dimension

500*360*420mm

Total weight

22kg
