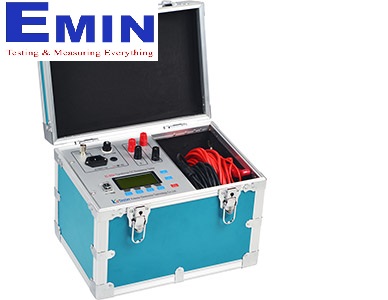

Transformer DC resistance tester KVTESTER ZC-205A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Product Parameters
Output current
Automatic,10A,5A,1A,200mA,40mA,<5mA
Resolving power
0.1uΩ
Accuracy
0.2%
Working temperature
0~40℃
Working humidity
<90% RH, no dewing
Outline dimension
390*205*290mm
Range
100Ω~200kΩ (<5mA )
1Ω~500Ω (40mA )
100mΩ~100Ω (200mA )
5mΩ~20Ω (1A )
1mΩ~4Ω (5A )
0.5mΩ~2Ω (10A )
