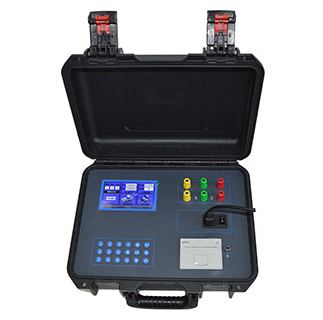

High precision transformer capacity and load tester KVtester ZC-202B

* Function

Transformer capacity, no-load current, no-load loss, short circuit voltage, short circuit (load) loss measurement.

*Working power

Input voltage 185Vac~250Vac

Allowable voltage 85Vac~264Vac

Frequency 50/60Hz

Allowable frequency 45Hz~65Hz

Input power 40VA

Joint Standard AC socket 60320

*AC Voltage

Range 10~650V

Resolving power 0.001V

Accuracy 0.2%±0.001V

*AC Current

Range 0.5~60A

Resolving power 0.001A

Accuracy 0.2%±0.001A

*Frequency

Range 45Hz~65Hz

Resolving power 0.001Hz

Accuracy 0.2%±0.001Hz

*Power

Range 0~39kW

Resolving power 0.001kW

Accuracy <±0.5%(CosΦ>0.1),±1.0%(0.02

*Capacity test range

10kV Dry type transformer 30kVA~3150kVA

10kV Oil immersed transformer 30kVA~3150kVA

35kV Oil immersed transformer 50kVA~31500kVA

20kV Dry type transformer 50kVA~2500kVA

35kV Dry type transformer 50kVA~2000kVA

*Environment condition

Operating temperature -10℃~+50℃

Storage temperature -25℃~+70℃

Humidity Relative humidity:5%~95%,no dewing

*Physical characteristics

Size 400×300×220mm3

Weight ≈8kg (Excluding attachments)
