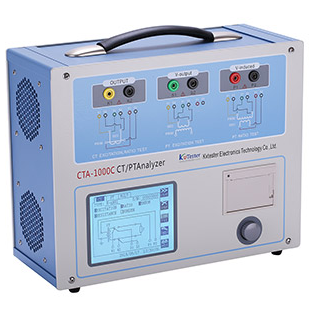

CT/PT Tester KVTESTER CTA-1000
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Output : 0～180Vrms,12Arms,36A（peak value）
Voltage measurement accuracy : ±0.1%
CT Ratio Range 1～40000 accuracy ±0.05%
PT Ratio Range 1～40000 accuracy ±0.05%
Phase Range ±2min accuracy 0.5min
DC resistance Range 0～300Ω accuracy 0.2%±2mΩ
Burden Range 0～1000VA accuracy 0.2%±0.02VA
Power supply AC220V±10%/AC110V±10%,50/60Hz
Environmental Conditions
Operating temperature: -10℃～50℃
Humidity:≤90%
Weight and Dimensions
Dimensions:365mm×290mm×153mm
Weight:≈10kg
