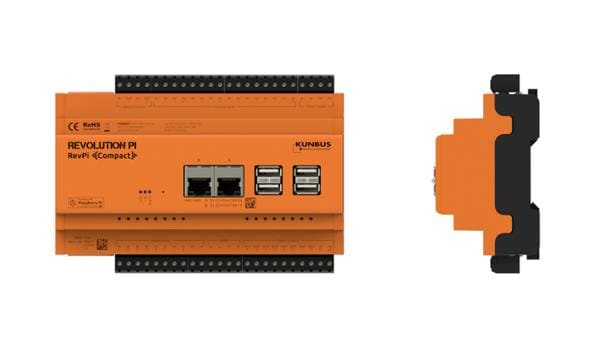

KUNBUS PR100272 Industrial PCs RevPi Compact

Chipsets: BCM2837B0

IP Rating: IP20

Dimensions: 160.6 mm x 90 mm 58 mm

Memory Type: Flash

Display Port: 1 x HDMI

Serial Ports: 1 x RS-485

Body Material: Polycarbonate (PC)

Installed RAM: 1 GB

Mounting Style: DIN Rail

Processor Type: ARM Cortex A53

Processor Brand: Broadcom

Processor Speed: 1.2 GHz

Maximum Frequency: 1.2 GHz

Power Consumption: 20 W

Number of LAN Ports: 1 x LAN

Number of USB Ports: 4 x USB A, 1 x Micro-USB

Maximum RAM Capacity: 1 GB

Supply Voltage - Max: 28.8 VDC

Supply Voltage - Min: 10.8 VDC

Maximum Operating Temperature: + 55 C

Minimum Operating Temperature: - 20 C
